Olivetti d-Colour MF3023 A4 Multifunction Printer - B3622

RELIABILITY, COLOUR AND SUPERIOR PERFORMANCE

Olivetti's A4 colour multifunctional d-Colour MF3023 systems, delivering up to 30 pages per minute, have been designed specifically for the demands of medium-sized workgroups.

Complying with the most recent environmental standards, these machines provide fast, reliable output in both mono and colour. With a resolution of 1,200 x 1,200 dpi, they are the ideal solution when high quality print work is required.

The wide 7" colour touch screen allows simple direct access to an array of highly productive functions.

Even processing complicated jobs is made easy by built-in programmable keys, while the advanced solution platform (JAWS) allows information to be shared, resources optimised and workflow improved.

A Scan Extension kit option is available for generating searchable PDF files while the Olivetti Mobile Print app support Airprint compatibility to enable printing from a smartphone or tablet, without a physical connection to the compan my network being required (option IB-36)

TECHNICAL SPECIFICATIONS

GENERAL

Type

MFP

Technology

Embedded Software Platform	Colour laser; JAWS software development platform (Java and Web Solutions)
Speed	Up to 30 ppm (A4, B/W & Colour)
Duplex Print/Copy Speeds	Up to 15 ppm (A4, B/W & Colour)
Processor	ARM Cortex-A9 Dual Core 1.2GHz + ARM Cortex-M3 100MHz
Resolution	1200 x 1200 dpi (at lower print speed); 600 x 600 dpi for scanning/copying.
Operator Panel	7" colour touch-screen
Warm-up Time	26 secs approx. or less
First Print Page Time	7.5 - 6.5 secs approx. in colour and mono
First Copy Page Time	10 - 8.5 secs approx. in colour and mono (DP); 9 - 7.5 secs approx. in colour and mono (from platen)
Memory	1GB standard; Max. 3GB + 128GB SSD Paper input capacity
Standard Interfaces	USB 2.0 (high speed), 2x USB Host Interface, Gigabit Ethernet (10Base-T/100Base-TX/1000Base-T); WiFi (IEEE 802.11b/g/n) optional; 1 slot for internal print server or for optional SD Card
Integrated Counter	100 dept. codes
Weight	Base unit: 35.4kg approx.
Dimensions (W x D x H)	Base unit: 475 x 558 x 616mm
Power Supply	220V ~ 240V, 50/60Hz
Consumption	Print/Copy Modes: 496W/512W; Standby Mode: 70W; Sleep Mode: 0.6W

Input Paper Handling

Bypass Feeder Tray	100 sheets, 60 - 220 gsm, A4, A5, A6, B5, B6, Letter, Legal, Custom (70x148mm - 216x356mm)
Standard Drawer	250 sheets, 60 - 163 gsm, A4, A5, A6, B5, B6, Letter, Legal, Custom (105x148mm - 216x356mm)
PF-5100 Optional Paper Drawer	500 sheets, 60 - 200 gsm, A4, A5, B5, B6, Folio, 216x340mm, Letter, Legal, Custom (92x162mm - 216x356mm) [3 drawers max.]
Paper Input Capacity, Max.	1850 Sheets [with 3 additional drawers, 4 drawers in total]
Originals Duplex Automatic Feeder:	RADF 75 sheets, 50 - 120 gsm, A4, A5, B5. B6. Folio, 216x340mm, Letter, Legal, Custom (92x162mm - 216x356mm)
Paper Output Capacity	Max 250 sheets face-down with paper full sensor
Automatic Duplex Printing	60-163 gsm, A4, A5, B5, Letter, Legal



Noise Levels (ISO 7779/ISO 9296)

Printing	49.5 dB(A) LpA
Standby	30 dB(A) LpA
Sleep	immeasurably low
Safety Standards	GS, TUV, CE

PRINT FUNCTIONS

Printing Speed	Up to 30 ppm A4 in mono and colour
Resolution	1200x1200 dpi (at lower speed)
Emulations	PCL6 (PCL-XL, PCL5c), KPDL3, PDF Direct Print, XPS Direct Print
Operating Systems	All current Windows operating systems, Mac OS X version 10.8 or later, UNIX, LINUX
Fonts/Barcodes	93 outline fonts (PCL), 93 fonts (KPDL 3), 8 fonts (Windows Vista), 1 Bitmap font, 45 types of one-dimensional barcodes, 1 type of two-dimensional barcode (PDF417)
Mobile Printing Support	Olivetti Mobile Print for iOS and Android, Airprint, Wi-Fi Direct, Google Cloud Print
Functions	Encrypted PDF direct print, IPP printing, e-mail printing, WSD printing, secure printing via SSL, IPsec, SNMPv3, quick copy, proof and hold, private print, stored job print functionality, ThinPrint (optional) for printing date directly without using a print driver

COPY FUNCTIONS

Copy Speed	Up to 30 ppm (A4, B/W & Colour)
Reduction / Enlargement Ratio	5 Reductions / 5 Enlargements
Originals Max. Format	A4
Continuous Copying	1-999
Zoom	25 - 400% with steps of 1%
Scan Mode	Manual 9 steps
Image Adjustment	Text + photo, text, photo, map; printed photo mode
Other Functions	Single scan multiple copies, electronic collation, 2-in-1, 4-in-1, ID Card copy, automatic drawer selection, blank page skip

SCAN FUNCTIONS

Scan Speed	Single side up to 60 ipm (300 dpi, A4, mono), 40 ipm (300 dpi, A4, colour) - Duplex up to 26 ipm (300 dpi, A4, mono), 17 ipm (300 dpi, A4, colour)
Scan Resolution	600 dpi, 400 dpi, 300 dpi
Originals Recognition	Text, photos, text + photo, OCR-optimised
File Types	TIFF, PDF, PDF/A, JPEG, XPS, Open XPS, encrypted PDF, high compression PDF, PDF/A-1a/b, PDF/A-2a/b/u, MS Office (optional Scan Extension kit required)
Compression Method	MMR/JPEG
Other Features	Integrated Address Book, Active Directory support, encrypted transfer, blank page skip

CONSUMABLES

Black Toner (B1282)	Up to 8,000 A4 pages (toner initial supply up to 3,500 pages)
Cyan Toner (B1283)	Up to 6,000 A4 pages (toner initial supply up to 2,500 pages)
Magenta Toner (B1284)	Up to 6,000 A4 pages (toner initial supply up to 2,500 pages)
Yellow Toner (B1285)	Up to 6,000 A4 pages (toner initial supply up to 2,500 pages)
Maintenance Kit (B1187)	Up to 200,000 pages
Maintenance Kit for Sheet Feeder (B1144)	Up to 200,000 pages
Staple Cartridge (B1189)	SH-13, 2 packs each of 1,500 staples

OPTIONS

Paper Drawer (B3134)	500-sheet PF-5100 [max. 3 optional drawers]
Semi-automatic Stapler (B3625)	MS-5100 B: 20 sheets
CB-5100L (B3137)	Low cabinet with storage capacity of 39cm x 53cm x 37cm
CB-5100H (B3136)	Tall cabinet with storage capacity of 39cm x 53cm x 50cm
Memory Upgrades	512MB/1GB/2GB
HD-6 (B4369)	SSD 32GB Hard Disk for easy document management
HD-7 (B4844)	SSD 128GB Hard Disk for easy document management
Data Security Kit (E) (B5679)	EAL3 security protocol; Encrypts the data stored on optional SSD
Scan Extension Kit (A) (B4498)	Scan searchable PDF solution, (OCR embedded)
IB-36 (B3406)	Wireless network interface (802.11b/g/n) with Wi-Fi Direct
IB-50 (B4805)	10Base-T/100Base-TX/1000Base-T Gigabit Ethernet Printer server
IB-51 (B4933)	Wireless network interface (802.11b/g/n)
UG-33 (B8403)	ThinPrint support

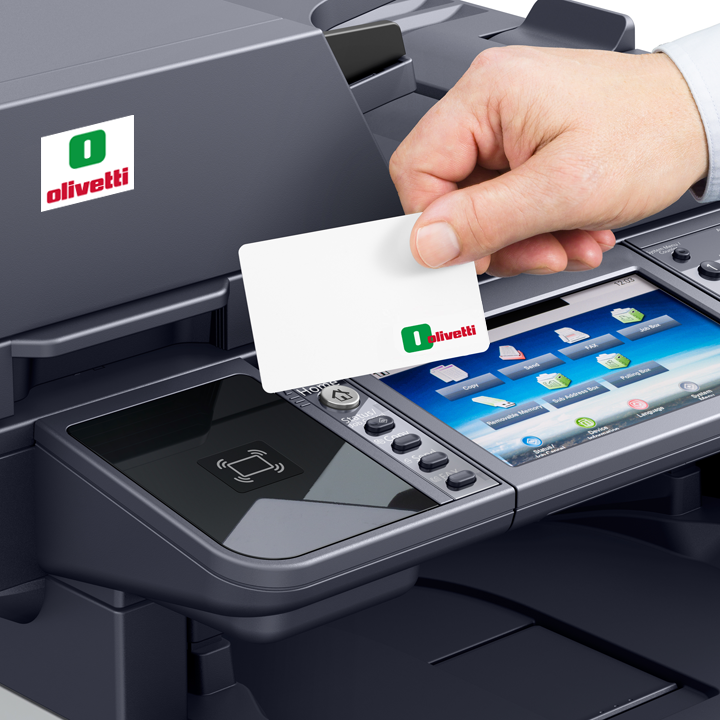

IC-Card Reader + Card Authentication Kit (B)	Support for various types of badge/card reader authentication.
Card Reader Holder 10 (B4845)	Plastic holder for integrating badge reader into control panel.
